Main dashboard

The main monitoring dashboard of the platform can be found under "Overview" in the menu on the left. Here many parameters of the platform are visualized. The overview is very much self-explanatory but some items can be configured:

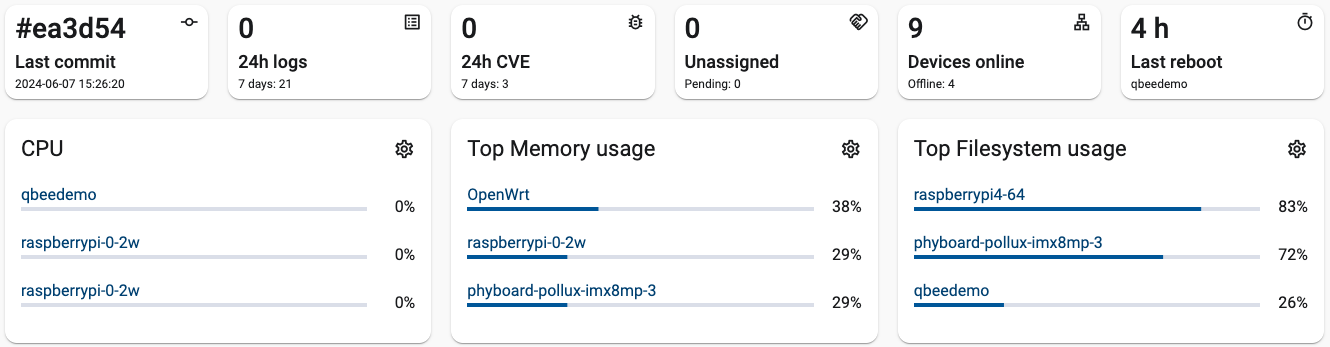

The second line of widgets shows Top CPU, Memory and Filesystem widgets as default.

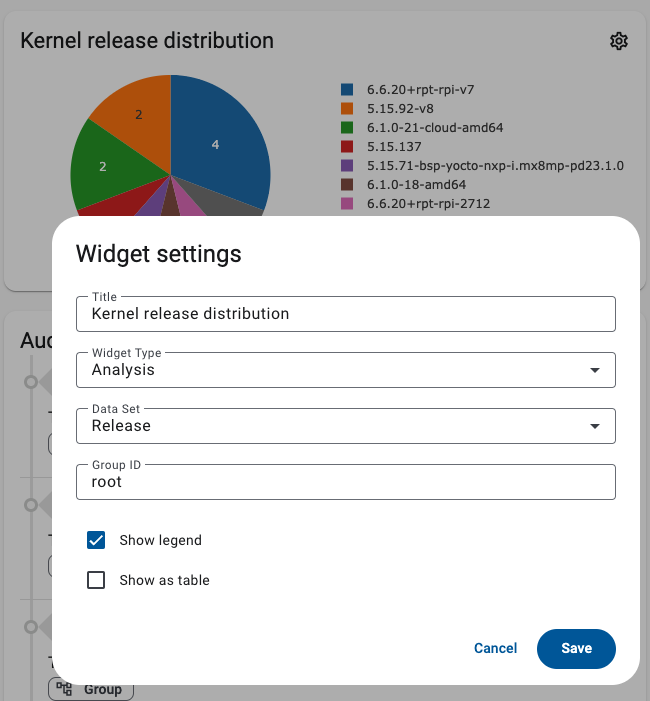

By clicking the COG symbol in each widget a dialogue is opened. Here different visualizations can be selected.

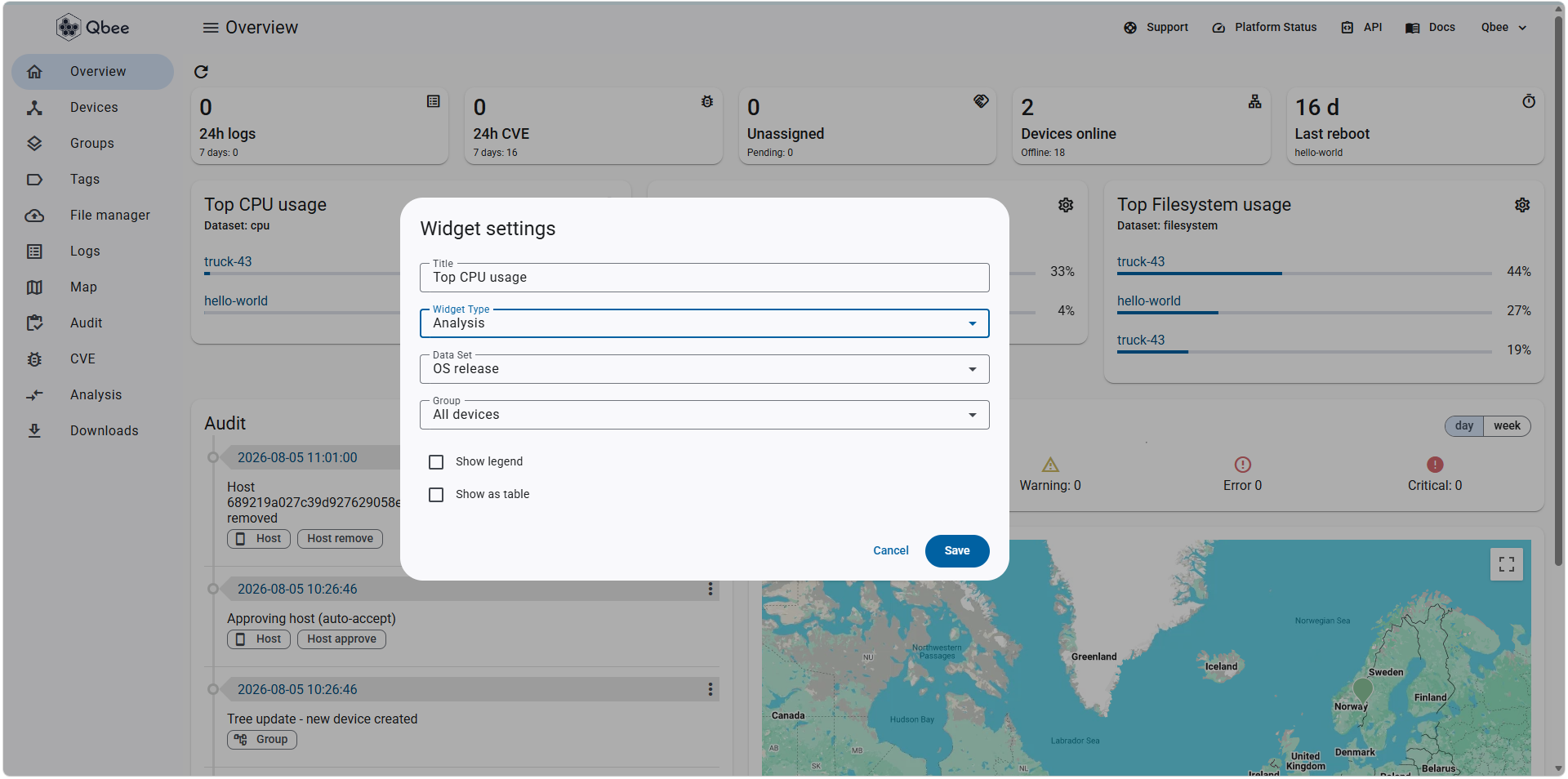

The "Analysis" widget type allows to select different visualizations that will be continuously extended. Select a title and dataset, then choose a "Group" to scope the visualization to the whole fleet or to a specific group/subset.

Options for the widget are to display it with or without legend and as a table or pie chart. This is for example useful to visualize the distribution of different kernel versions in association with OTA updates.

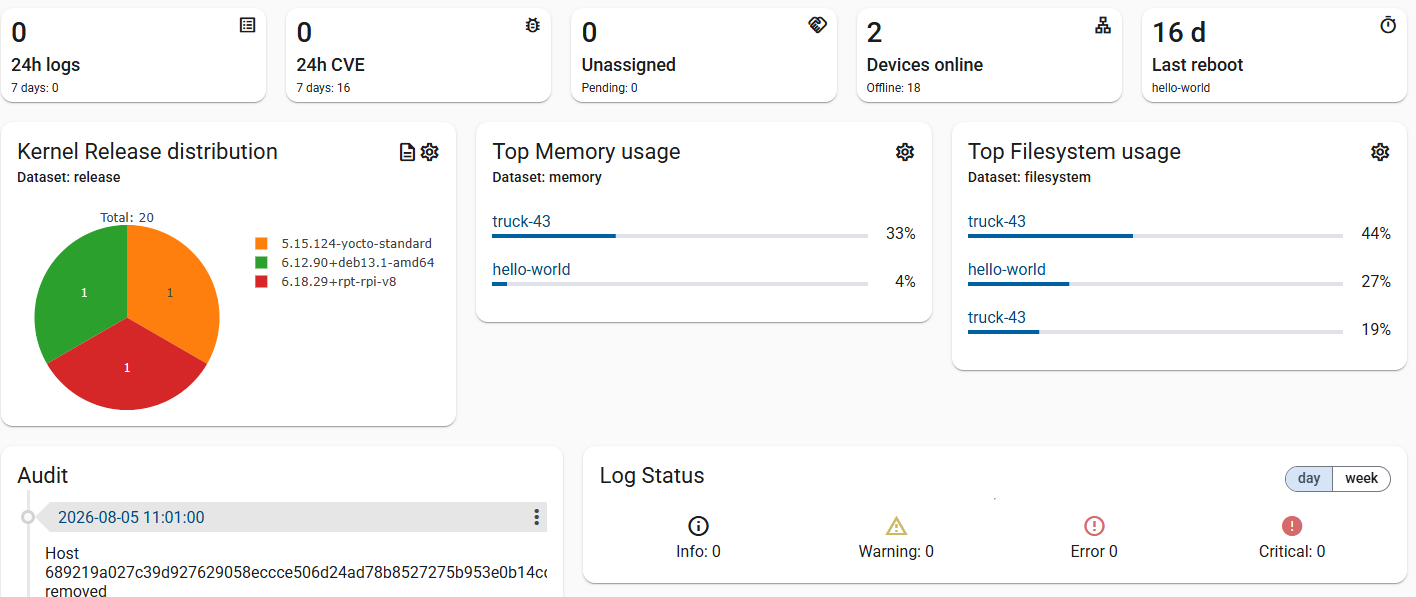

Log status is giving insight into events for the last 24h or 7 days.
